HRC coupling
size:HRC70,HRC90,HRC110,HRC130,HRC150,HRC180,HRC230,HRC280
Flexible HRC coupling

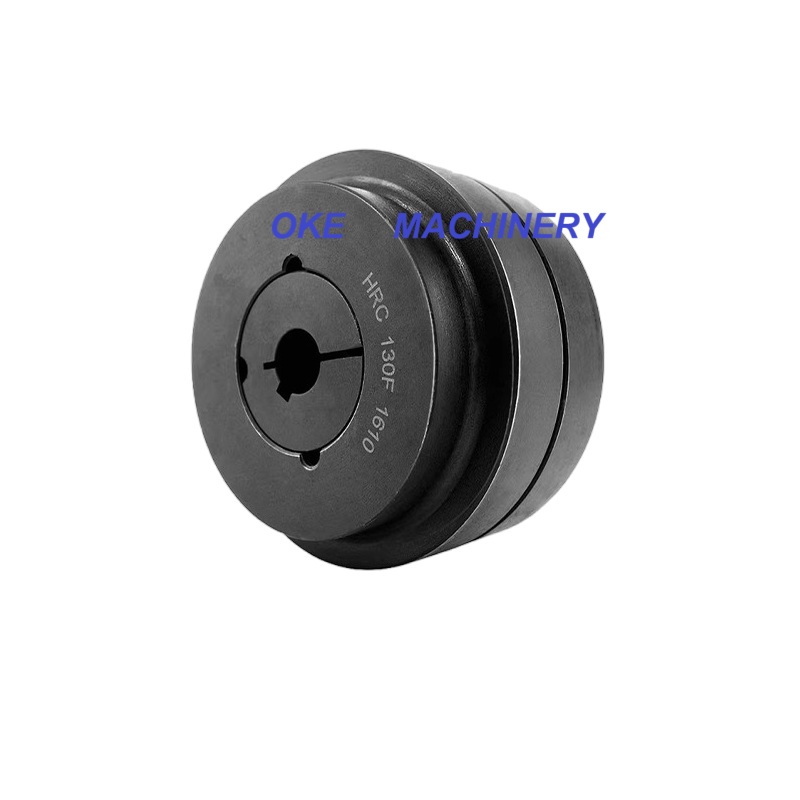

Flange bore: Pilot bore (B Flange), Taper bore (F Flange and H Flange),Finished bore with keyway.
Material: Cast iron Flange and NBR flexible insert elements or PU flexible insert elements

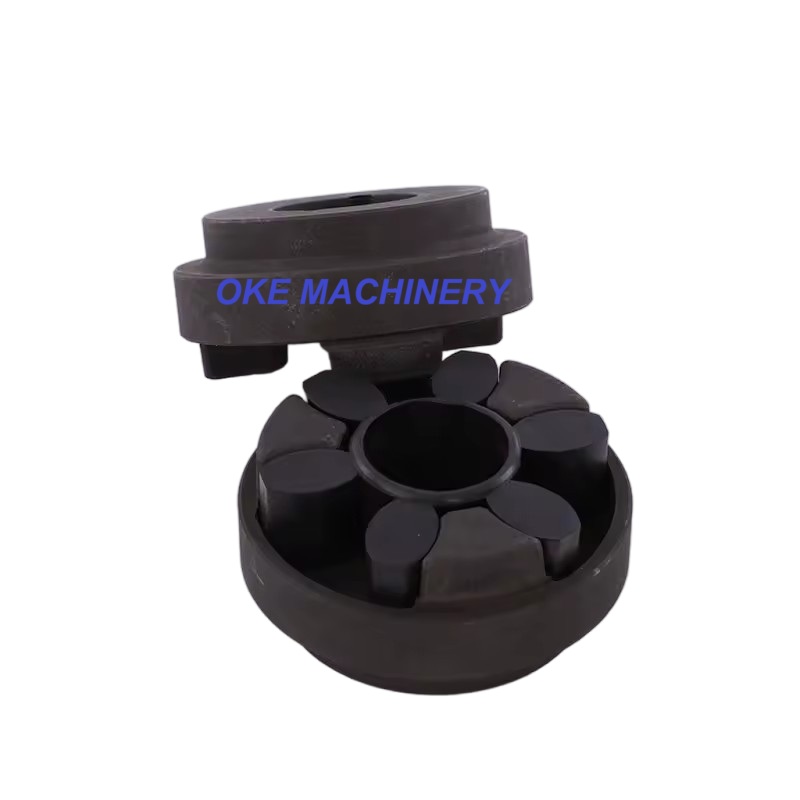

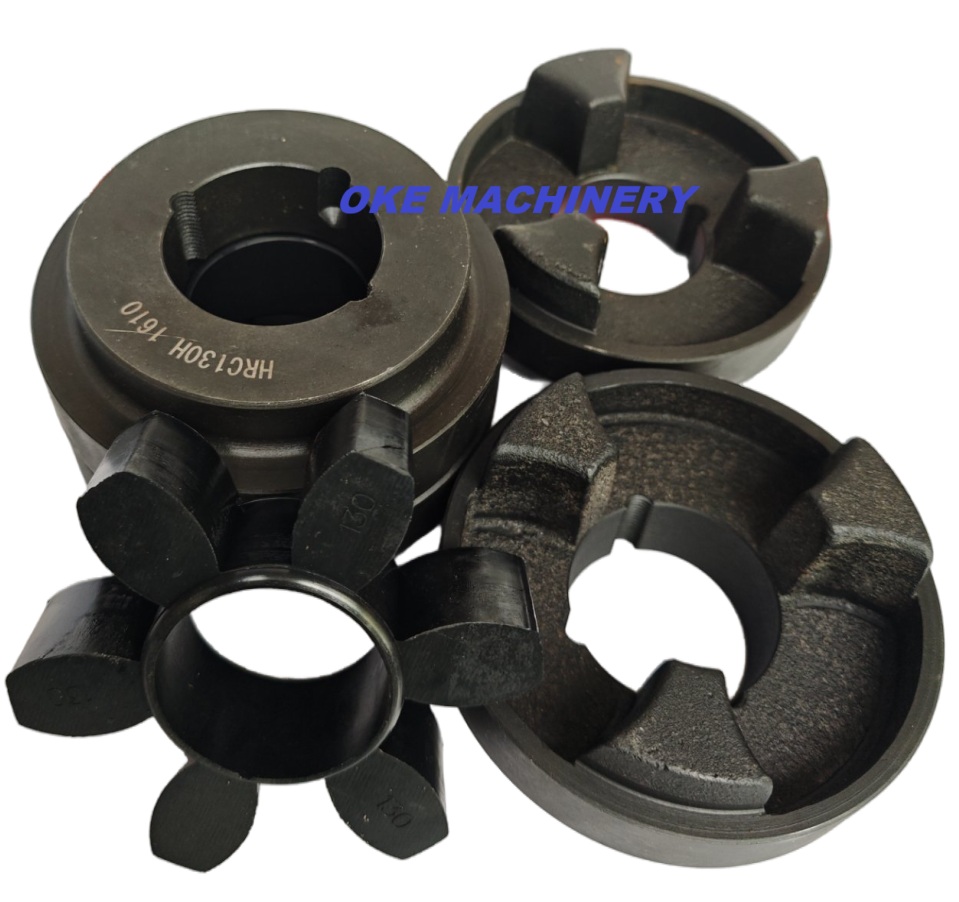

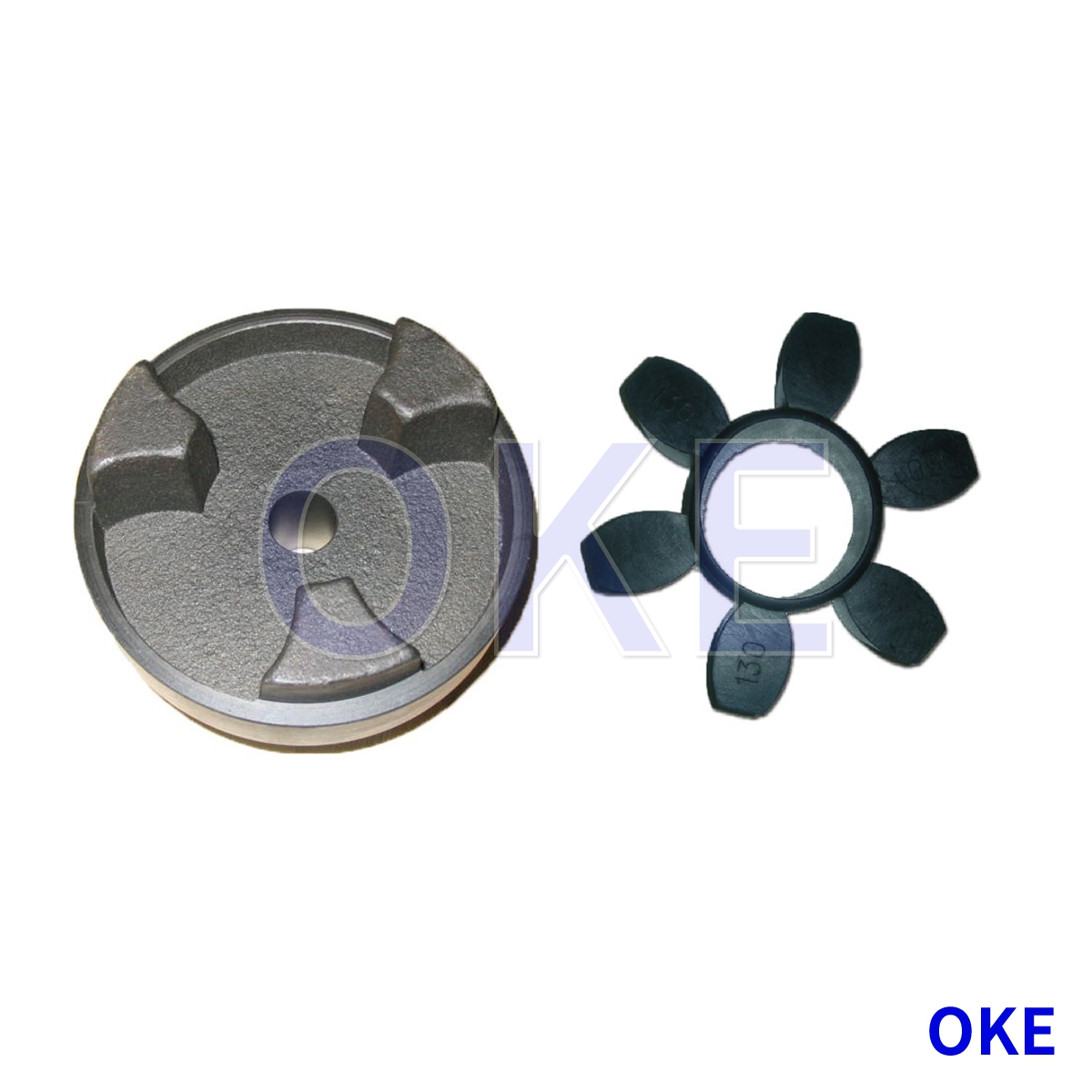

The HRC coupling range consists of coupling half bodies and flexible spider insert elements.They provide a torsionally flexible connection of shafts,and allow for incidental misalignment,abosorb shock loads and dampen out small amplitude vibrations.Permitting quick and easy installation by means of taper-lock bushing,and offering quick alignment.HRC coupling is ideal for use with electric motors and driven machine.
Flexible HRC coupling is a breakthrough safe claw coupling with a flexible element to provide a torsionally flexible connection of shafts.The flexible element,the coupling star,excels in its wear resistance,its oil,ozone and ageing resistance.Thanks to the coupling's felxibility,impacts,rotary vibrations and noises are effectively absorbed. HRC coupling combines the outstanding features of the flexible coplings with the advantages of the taper bush system.
HRC couplings:
1.Offers the simplest,most straightforward fitting available
2.Ease if alignment and fitting using straight edge and machined outside diameters
3.Accomodates incidental misalignment
4.Exeptional performance at low cost
HRC couplings are used widely in industrial power transmission applications,including motors,pumps,compressors,and more.
