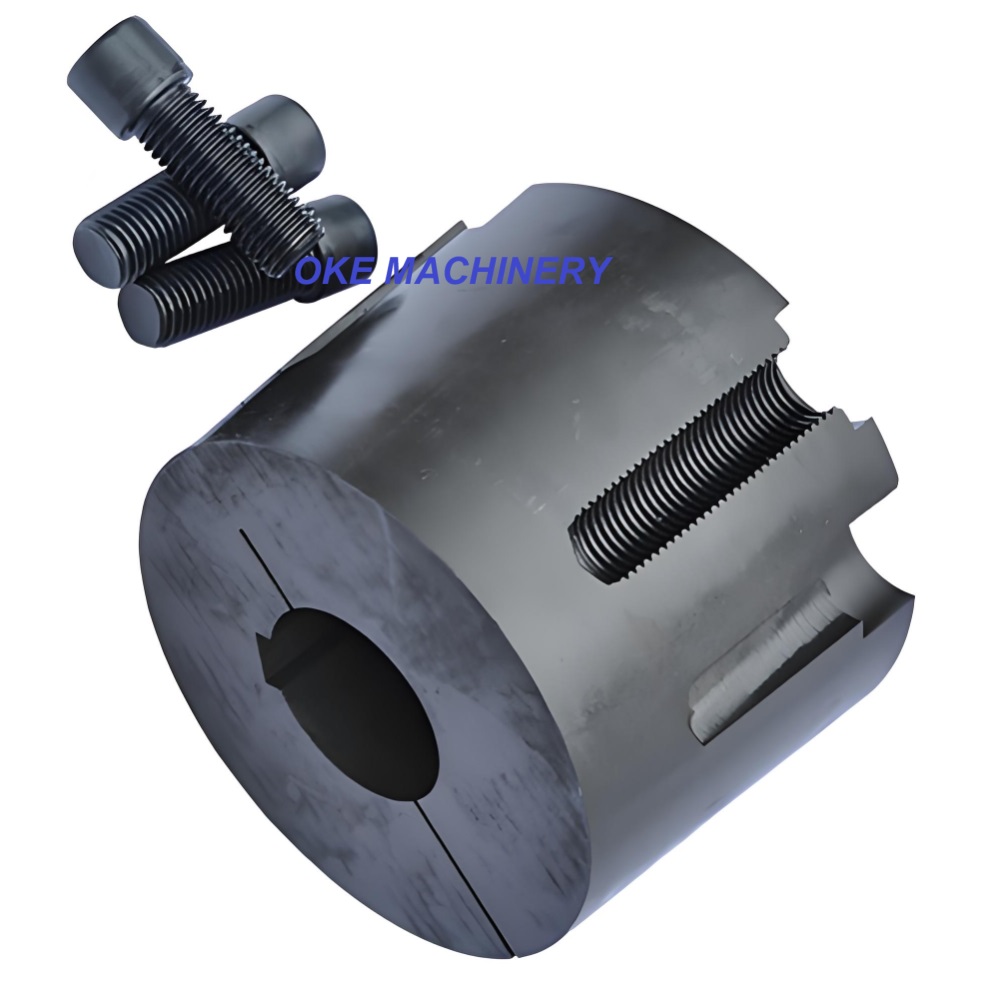

Taper lock bush
    Publish time 2023-11-02 13:38

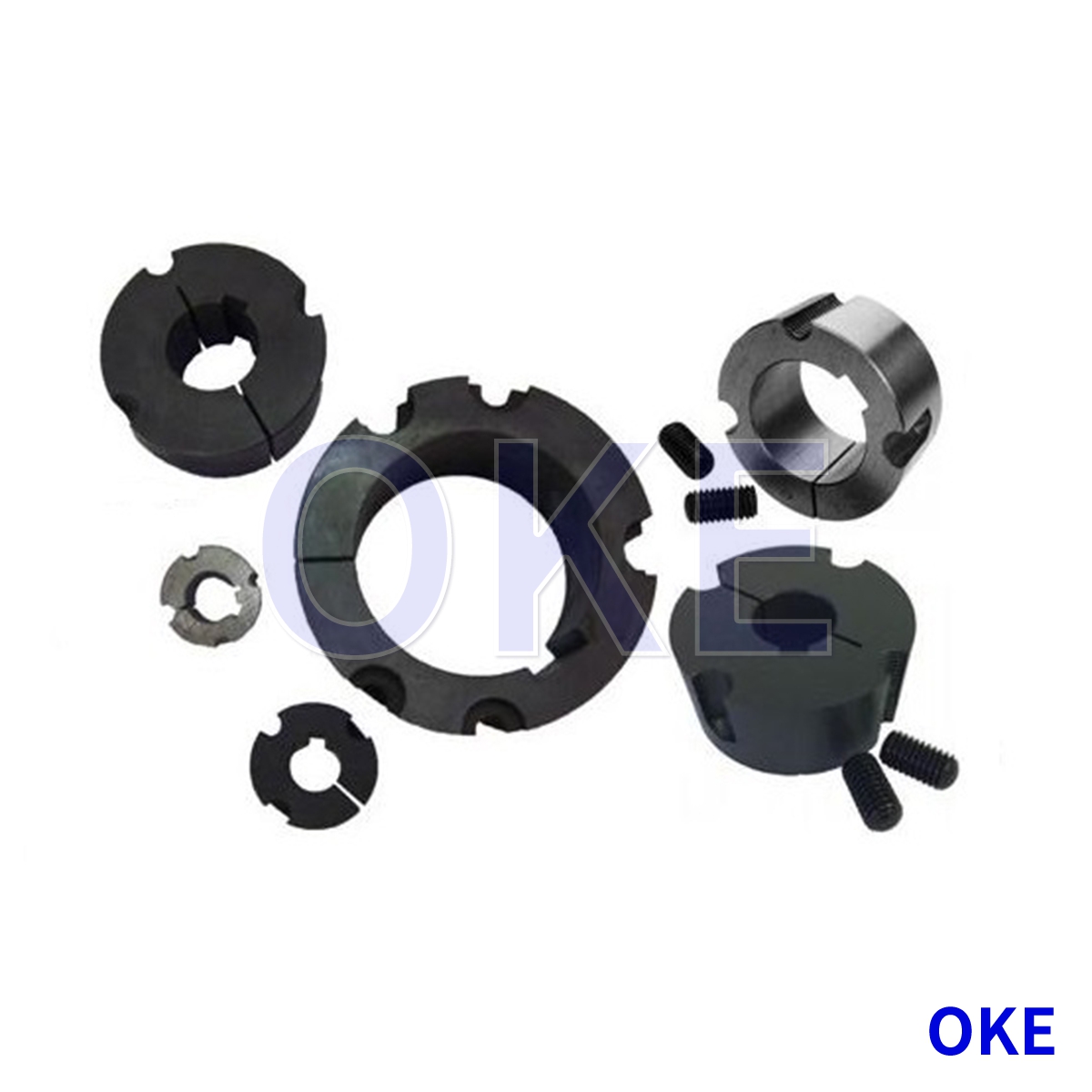

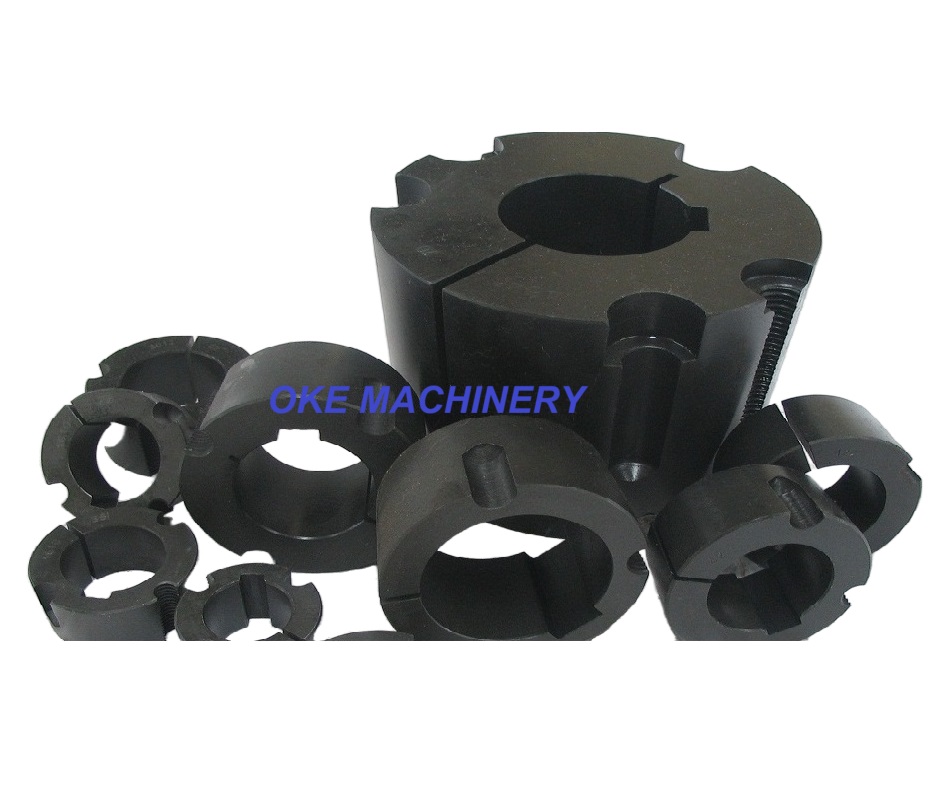

We can offer you taper lock bush,spilt taper bush and QD bush.
Material: Cast iron, steel.
Taper bush Size: 1008,1108,1210,1215,1310,1610,1615,2012,2517,2525,3020,3030,3525,3535,4030,4040,4535,4545,5040,5050,6050,7060
Surface treatment: Phosphate black
Application: locking for pulley,coupling,sprocket or other parts on shaft
Taper lock bushes, also known as taper lock bushings or taper bushes, are mechanical components used for securing rotating components, such as pulleys, sprockets,coupling,bolt-on hubs,weld-on hub or gears, onto shafts in various industrial applications. They provide a secure and concentric connection between the shaft and the mounted component. Taper lock bushes are commonly used to transmit torque and rotation between the shaft and the mounted part.
The taper lock bushing is pre-bored and keyed to match the required shaft and keyway diameters.The outside of the bush is tapered to match the component bore that is to be located on the shaft.
A taper lock bushing has a taper of eight degrees,which reduces the length-through-bore. Before installation,make sure to clean the bushings thoroughly to ensure they seat properly.
Benefits of taper lock bush:Ease of installation and removal,equivalent to a shrink-on kit on uniform load applications and thus eliminating the cost of a key,no costly reboring(full range of both metric and imperial bore available).

Welcome inquire us for more detail

Taper lock bushbore / mm
100810 to 25
110810 to 28
1210,121511 to 32
131014 to 35
1610,161514 to 42
2012,201718 to 50
2517,252520 to 60
3020,303025 to 75

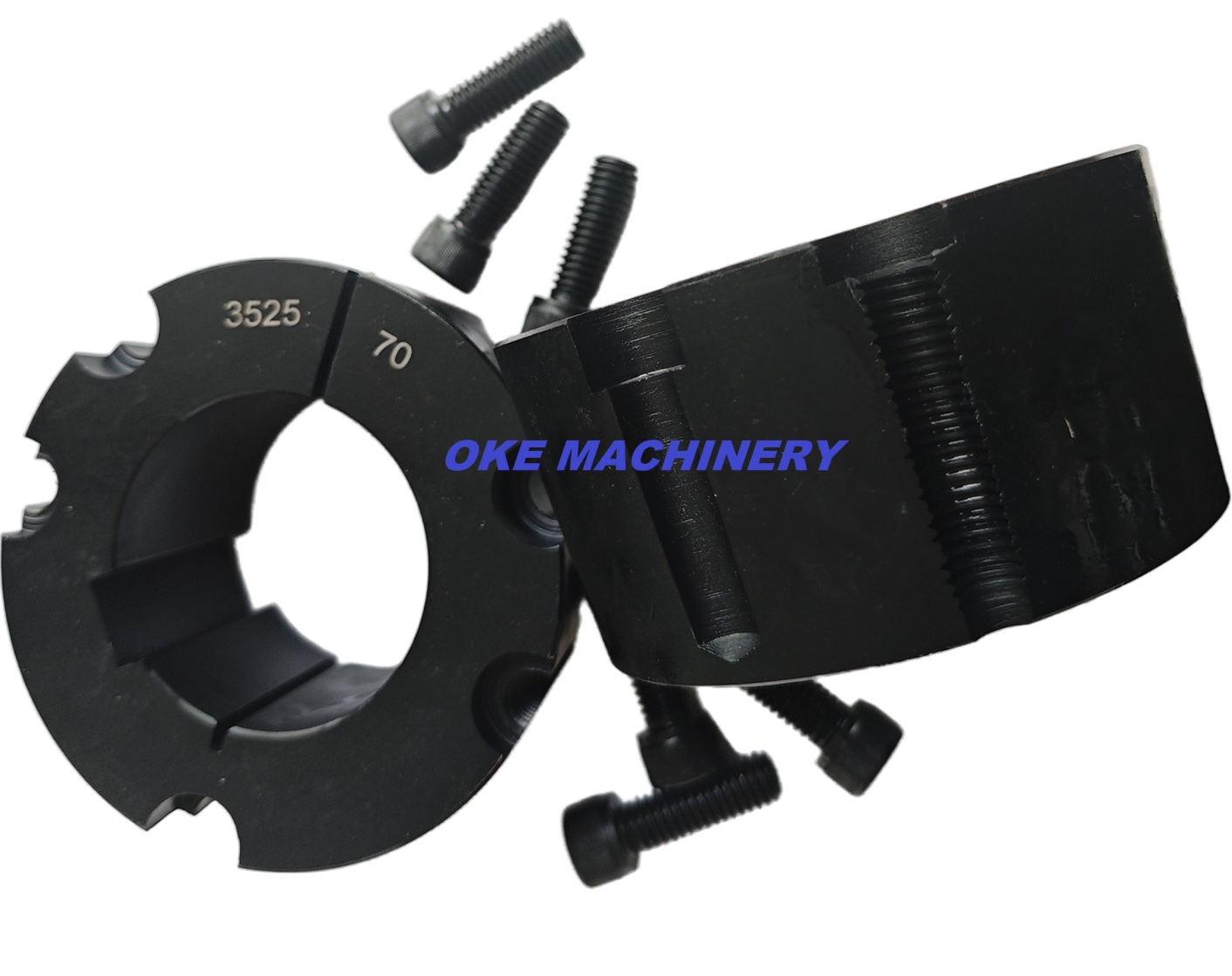

3525,353535 to 90
4030,404040 to 100
4535,454555 to 110
5040,505060 to 125
